Tuotteet

Testerit
Yleismittarit
Oskillskooppit
Sivuleikurit ja pihdit
Työkalusarjat

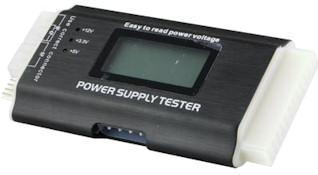

PC-virtalähteen testeri
Hinta 40 EUR
(sis. alv. 23%)

Tällä laitteella tarkistetaan virtalähteen liitännät.
Virtalähde liitetään 24-piniseen ATX-liitokseen.
Sen jälkeen voi testata liitoksen kerrallaan.
Liitokset: 4-pin virta seuraaville: HDD/CD/DVD, SATA,
4-pin ATX12V, 8-pin EPS12V, PCI-Express ja 4-pin virta levykkeelle.
LCD-näytöltä näkee, toimiiko liitos vaiko ei.




Yleismittari GSM-880
Hinta 20 EUR
(sis. alv. 23%)

Ominaisuudet:

• HOLD function
• socket for testing transistors' gain (hFE) parameter
• pocket-size (small dimensions)
• manual ranging
• universal
• low battery indicator

Display type LCD 3,5 digit (1999) 15mm
Sampling 2,5x/s
DC voltage measuring range 200m/2V/20V/200V/1000V
DC voltage measuring accuracy ±(0,5% + 3 digits)
AC voltage measuring range 200V/750V
AC voltage measuring accuracy ±(1,2% + 10 digits)
DC current measuring range 200µ/2m/20m/200m/10A
DC current measuring accuracy ±(1% + 2 digits)
Resistance measuring range 200/2k/20k/200k/2M
Resistance measuring accuracy ±(1% + 2 digits)
Transistors' gain (hFE) test 2.8V
Diode test 1mA, 2,8V
Overall dimensions (H x W x D) 158 x 74 x 32 mm
Weight with battery 250g
Power supply 3 batteries 1,5V LR03 (AAA)
Safety EN61010: CAT II 1000V, CAT III 600V
Pollution degree 2, Equipment batteries




Yleismittari AX-101
Hinta 20 EUR
(sis. alv. 23%)

Ominaisuudet:

• shock-resistant case
• manual ranging
• 1,5V and 9V battery test
• diode and continuity test with buzzer
• low battery indicator
• LCD

Display type LCD (1999)
Sampling 3x/s
DC voltage measuring range 200mV/2V/20V/200V/600V
DC voltage measuring accuracy ±(0,5% + 4 digits)
AC voltage measuring range 200V/600V
AC voltage measuring accuracy ±(1,2%+ 10 digits)
DC current measuring range 2mA /200mA/ 10A
DC current measuring accuracy ±(1,5% + 3 digits)
Resistance measuring range 200/2k/20k/200k/20M/200M
Resistance measuring accuracy ±(0,8% + 5 digits)
Overall dimensions (H x W x D) 145 x 80 x 28 mm
Weight with battery 180g
Power supply 1 battery 9V 6F22
Equipment set of test leads




Yleismittari AX-105
Hinta 40 EUR
(sis. alv. 23%)

Ominaisuudet:

• auto and manual ranging
• automatic power-off
• HOLD function
• REL function
• shock-resistant case
• measures frequency, capacitance and temperature
• diode and continuity test with buzzer
• LCD

Display type LCD 3,75 digit (3999)
Sampling 3x/s
DC voltage measuring range 400m/4V40V/400V/600V
DC voltage measuring accuracy ±(0,5% + 4 digits)
AC voltage measuring range 4V/40V/400V/600V
AC voltage measuring accuracy ±(0,8% + 6 digits)
DC current measuring range 400µ/4m/40m/400m/10A
DC current measuring accuracy ±(1% + 10 digits)
Resistance measuring range 400/4k/40k/400k/4M/40M
Resistance measuring accuracy ±(0,8% + 4 digits)
Capacitance measuring range 1p...4n/40n/400n/4µ/40µ/100µF
Capacitance measuring accuracy ±(3,5% + 8 digits)
Frequency measuring range 0,001Hz...1Hz/10Hz/100Hz/1k/10k/100k/1M/30MHz
Frequency measuring accuracy ±(0,5% + 10 digits)
Overall dimensions (H x W x D) 145 x 74 x 36 mm
Weight with battery 190g
Power supply 2 batteries 1,5V (AAA)
Equipment user manual
set of test leads
soft cover
drop-like K-type temperature probe

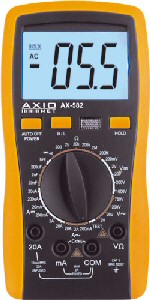

Yleismittari AX-582
Hinta 40 EUR
(sis. alv. 23%)

Ominaisuudet:

• auto power-off
• large, backlit LCD (28mm)
• HOLD function
• impact resistant holster
• measures transistors' gain (hFE) by means of the adaptor included
• manual ranging
• diode and continuity test with buzzer
• universal
• low battery indicator
• detects line wire (acoustic and optical indication)

Display type LCD 3,5 digit 28mm
Sampling 3x/s
DC voltage measuring range 0,1m...200m/2V/20V/200V/1000V
DC voltage measuring accuracy ±(0,5% + 3 digits)
AC voltage measuring range 1m...2V/20V/200V/750V
AC voltage measuring accuracy ±(0,8% + 5 digits)
Bandwidth for AC voltage measurements 40Hz...200Hz
DC current measuring range 0,1µ...200µ/20µ/20m/200m/2A/20A
DC current measuring accuracy ±(0,8% + 4 digits)
AC current measuring range 0,1m...200m/2A/20A
AC current measuring accuracy ±(2% + 5 digits) Bandwidth for AC current measurements 40Hz...200Hz
Resistance measuring range 0,1...200/2k/20k/200k/2M/200M
Resistance measuring accuracy ±(0,8% + 3 digits)
Capacitance measuring range 10p...20n/2µ/200µF
Capacitance measuring accuracy ±(2,5% +20 digits)
Detection line wire
Transistors' gain (hFE) test 3V
Diode test 1mA, 3V
Continuity test acoustic signal for R<70R
Overall dimensions (H x W x D) 189 x 97 x 35 mm
Weight with battery 375g
Power supply 1 battery 9V 6F22
Equipment adaptor for capacitance and transistors' gain (hFE) measurement
set of test leads, Optional equipment AX-58P soft cover

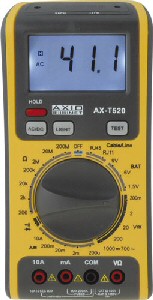

Yleismittari + LAN-testeri AX-T520
Hinta 60 EUR
(sis. alv. 23%)

Ominaisuudet:

• large backlit LCD (15mm)
• HOLD function
• LAN (RJ45 connectors) and telephone lines (RJ11 connectors) testing function
• manual ranging
• continuity test with buzzer
• 1,5V, 6V and 9V battery tester
• universal
• low battery indicator

Display type LCD 3,5 digit (3999) 15mm
DC voltage measuring range 200m/2V/20V/200V/1000V
DC voltage measuring accuracy ±(0,8% + 2 digits)
AC voltage measuring range 200m/2V/20V/200V/700V
AC voltage measuring accuracy ±(0,8% + 3 digits)
DC current measuring range 0,2m/2m/20m/200m/10A
DC current measuring accuracy ±(0,8% + 3 digits)
AC current measuring range 0,2m/2m/20m/200m/10A
AC current measuring accuracy ±(2% + 3 digits)
Resistance measuring range 200/2k/20k/200k/2M/20M/200M
Resistance measuring accuracy ±(0,8% + 3 digits)
Continuity test acoustic signal for R<70R
Overall dimensions (H x W x D) 185 x 85 x 44 mm
Weight with battery 360g
Power supply 1 battery 9V 6F22
Safety EN61010: CAT II 600V, CAT III 300V




PicoScope 2104
Hinta 230 EUR
(sis. alv. 23%)

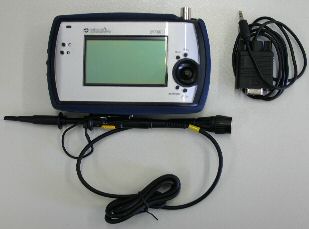

Käsiskooppi PPS10
Hinta 237 EUR
(sis. alv. 23%)




Sivuleikkurit
Hinta 14 EUR
(sis. alv. 23%)




Pihdit
Hinta 14 EUR
(sis. alv. 23%)

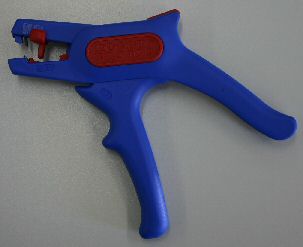

Kuorintapihdit
Hinta 24 EUR
(sis. alv. 23%)

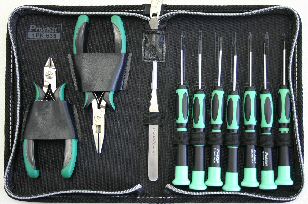

Sivuleikkuri-, pihti- ja ruuvimeisselisarja
Hinta 42 EUR
(sis. alv. 23%)

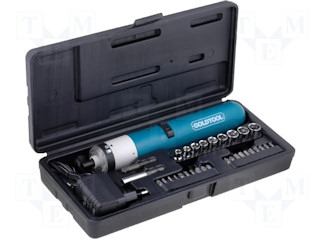

Ladattava ruuviväänninsarja
Hinta 49 EUR
(sis. alv. 23%)

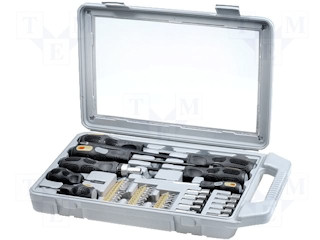

45-osainen ruuvitalttasarja
Hinta 34 EUR
(sis. alv. 23%)

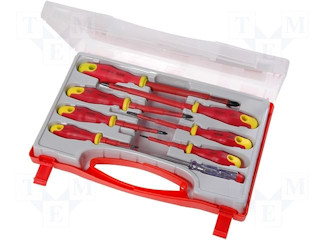

8-osainen ruuvitalttasarja 1000V
Hinta 29 EUR
(sis. alv. 23%)

Ristipää, Phillips :
PH0 x 60, PH1 x 80, PH2 x 100, PH3 x 150
Ura :
3 x 75, 4 x 100, 6 x 150
Jännitetesteri :
3 x 60

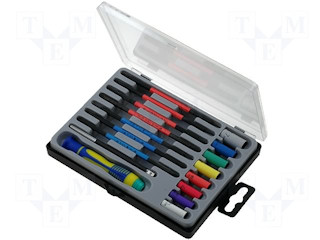

17-osainen ruuvitalttasarja
Hinta 23 EUR
(sis. alv. 23%)

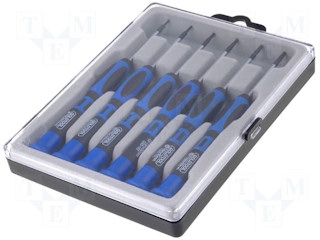

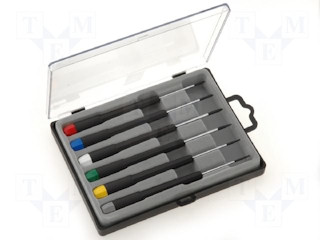

6-osainen ruuvitalttasarja
Hinta 15 EUR
(sis. alv. 23%)

Ristipää, Phillips :
PH0 x 50, PH00 x 50, PH1 x 50
Ura :
2 x 50, 2.4 x 50, 3 x 50




11-osainen ruuvitalttasarja kännykkähuoltoon
Hinta 14 EUR
(sis. alv. 23%)




27-osainen ruuvitalttasarja
Hinta 23 EUR
(sis. alv. 23%)




6-osainen Torxsarja
Hinta 19 EUR
(sis. alv. 23%)

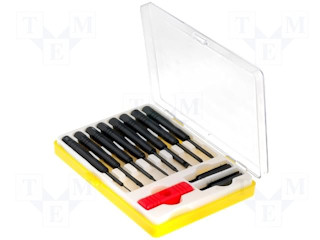

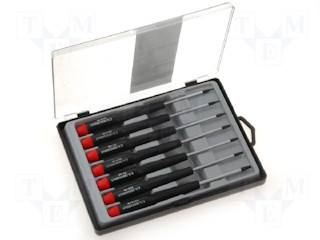

7-osainen Torxsarja
Hinta 15 EUR
(sis. alv. 23%)

TX05, TX06, TX07, TX08, TX09, TX10, TX15

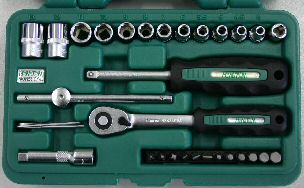

Hylsysarja
Hinta 28 EUR
(sis. alv. 23%)

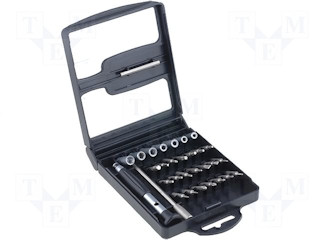

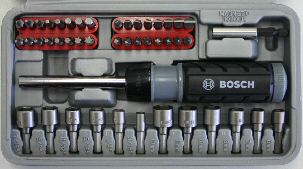

Ruuvimeisseli ja hylsysarja
Hinta 33 EUR
(sis. alv. 23%)
